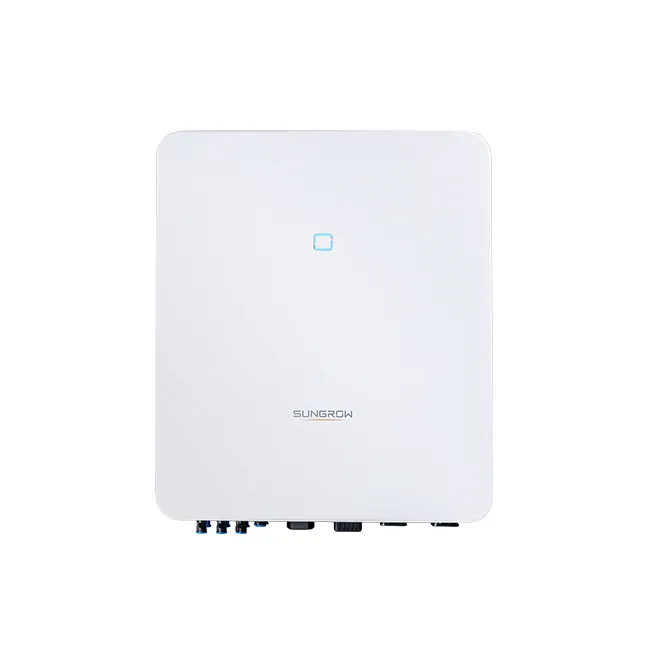

Inverter Sungrow 10kW 3phase Hybrid 10Y

โพสต์เมื่อ : 13 ก.พ 2568 เวลา 8:5 น.

Max. PV input power : 7500 W , 9000 W , 12000 W , 15000 W
Max. PV input voltage : 1000 V
Startup voltage : 180 V , 250 V , 250 V , 250 V
Nominal input voltage : 600 V
MPP voltage range : 150 V – 950 V , 200 V – 950 V , 200 V – 950 V , 200 V – 950 V
MPP voltage range for nominal power : 210 V – 850 V , 250 V – 850 V , 330 V – 850 V , 280 V – 850 V
No. of MPPTs : 2
Max. number of PV strings per MPPT : 1 / 1 , 1 / 1 , 1 / 1 , 1 / 2
Max. PV input current : 25A (12.5A / 12.5A) , 25A (12.5A / 12.5A) , 25A (12.5A / 12.5A) , 37.5A (12.5A / 25A)
Max. current for input connector : 16 A
Short-circuit current of PV input : 32 A (16 A / 16 A) , 32 A (16 A / 16 A) , 32 A (16 A / 16 A) , 48 A (16 A / 32 A)

Max. AC input power from grid : 12500 W , 15000 W , 18600 W , 20600 W
Nominal AC output power : 5000 W , 6000 W , 8000 W , 10000 W
Nominal AC ouput current : 7.3 A , 8.7 A , 11.6 A , 14.5 A
Max. AC output apparent power : 5000 VA , 6000 VA , 8000 VA , 10000 VA
Max. AC output current : 7.6 A , 9.1 A , 12.1 A , 15.2 A
Nominal AC voltage : 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V
AC voltage range : 270 – 480 V
Nominal grid frequency /Grid frequency range : 50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz
THD : <3 % (of nominal power)
DC current injection : <0.5 % In
Power factor : >0.99 / 0.8 leading to 0.8 lagging

LVRT : Yes
Anti-islanding protection Yes
AC short circuit protection : Yes
Leakage current protection : Yes
DC switch (solar) : Yes
DC fuse (battery) : Yes
Overvoltage category : III [MAINS], II [PV] [BATTERY]
SPD : DC Type II / AC Type II
Battery input reverse polarity protection : Yes
Parallel operation on grid port / Max. No.of inverters : Master-slave mode / 5 * (need same inverters type)

Battery type : Li-ion battery
Battery voltage : 150 V – 600 V
Max charge / discharge current : 30 A ** / 30 A **
Max charge / discharge power : 7500 W / 6000 W , 9000 W / 7200 W , 10600 W / 10600 W , 10600 W / 10600 W

Max. efficiency : 98.0 % , 98.2 % , 98.4 % , 98.4 %
European efficiency : 97.2 % , 97.5 % , 97.9 % , 97.9 %
Isolation method (solar / battery) : Transformerless / Transformerless
Degree of protection : IP65
Operating ambient temperature range : -25 ℃ – 60 ℃
Allowable relative humidity range (non-condensing) : 0% – 100%
Cooling method : Natural convection
Max. operating altitude : 4000 m (>3000 m derating)
Noise (Typical) : 30dB (A)
Display : LED
Communication : RS485, WLAN, Ethernet, CAN, 4×DI, 1×DO
DC connection type : MC4 (PV) / Sunclix (Battery)
AC connection type : Plug and play connector
Compliance : IEC / EN 62109, IEC / EN 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 61683,VDE-AR-N-4105, AS/NZS 4777.2, EN50549-1, NRS 097-2-1, TOR Generator Type A

Nominal voltage : 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V
Frequency range : 50 Hz / 60 Hz
Total hamonic factor output voltage (Linear load) : 2 %
Switch time to emergency mode : < 20ms
Nominal output power : 5000 W / 5000 VA , 6000 W / 6000 VA , 8000 W / 8000 VA , 10000 W / 10000 VA
Peak output power *** : 6000 W / 6000 VA, 5min , 10000 W / 10000 VA, 10s , 7200 W / 7200 VA, 5min , 10000 W / 10000 VA, 10s , 12000 W / , 12000 VA, 5min 12000 W / , 12000 VA, 5min ,
Rated output current for backup load during on grid mode : 3 * 18.5 A

ระยะเวลารับประกันตัวสินค้า 10 ปี

Price XXX
