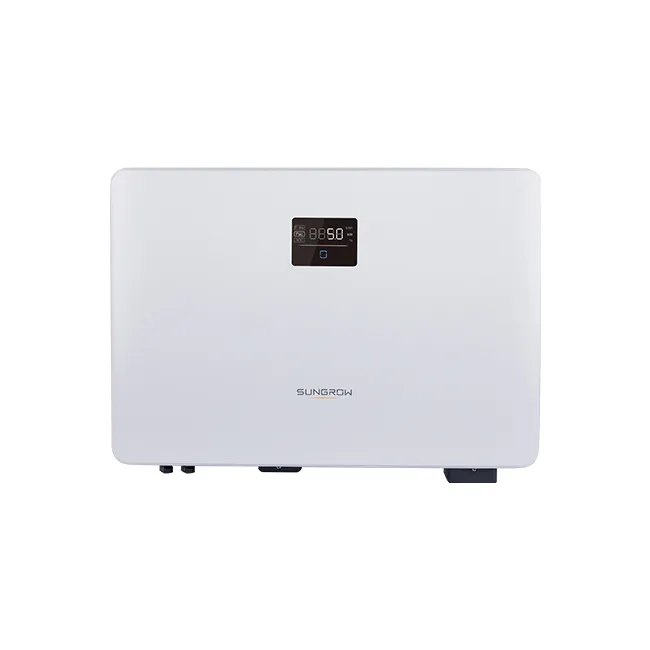

Inverter Sungrow 5kW 1phase Hybrid 10Y

Inverter Sungrow 5kW 1phase Hybrid 10Y

Input ( DC )

• Recommended max. PV input power : 12000 Wp , 13000 Wp
• Max. PV input voltage * : 600 V
• Min. PV input voltage / Startup input voltage: 40 V / 50 V
• Rated PV input voltage: 360 V
• MPPT operating voltage range ** : 40 V – 560 V
• No. of independent MPP trackers : 2
• No. of PV strings per MPPT : 1/1
• Max. PV input current : 32 A ( 16 A / 16 A )
• Max. DC short-circuit current : 40 A ( 20 A / 20 A )
• Max. current for input connector : 20A

Battery data

• Battery type : Li-ion battery
• Battery voltage range : 80 V - 460 V
• Max. charge *** / discharge current *** : 30 A / 30 A
• Max. charge / discharge power : 6600 W

Input / Output ( AC )

• Max. AC power from grid : 12000 VA , 13000 VA
• Rated AC output power : 4999 W , 6000 W
• Max. AC output apparent power : 4999 VA , 6000 VA
• Rated AC output apparent power : 4999 VA , 6000 VA
• Rated AC output current ( at 230 V ) : 21.7 A , 26.1 A
• Max. AC output current : 22.7 A , 27.3 A
• Rated AC voltage : 230 V
• AC voltage range : 154 V – 276 V
• Rated grid frequency : 50 Hz / 60 Hz
• Grid frequency range : 45 Hz – 55 Hz / 55 Hz – 65 Hz
• Harmonic ( THD ) : < 3 %  ( of rated power )
• Power factor at rated power / Adjustable power factor : > 0.99 at default value at rated power
• Feed-in phases / connection phases : 1/1
• PID recovery functionTopology [ฟังก์ชันการกู้คืน PID ]

Backup data （ on-grid mode ）

• Max. output power for backup load **** : 6000 W
• Max. output current for backup load ***** : 27.3 A

Backup data （ off-grid mode ）

• Rated voltage : 230V ( ± 2 % )
• Rated frequency : 50 Hz / 60 Hz ( ± 0.2 % )
• THDV ( @Linear load ) : < 2 %
• Backup switch time : < 10 ms
• Rated output power : 5000 W / 5000 VA , 6000 W / 6000 VA
• Peak output power : 8400 VA，10 s

Efficiency

• Max. efficiency / European efficiency : 97.7 % / 97.3 %

Protection & Function

• Grid monitoring : Yes
• DC reverse polarity protection : Yes
• AC short circuit protection : Yes
• Leakage current protection : Yes
• DC switch ( solar ) : Yes
• Surge protection : DC Type II / AC Type II
• PID Zero : Yes
• Battery input reverse polarity protection : Yes

General data

• Topology ( Solar / Battery ) : Transformerless/ Transformerless
• Degree of protection : IP65
• Dimensions ( W * H * D ) : 490 mm * 340 mm * 170 mm
• Weight : 18.5 kg
• Mounting method : Wall-mounting bracket
• Operating ambient temperature range : -25 C-60 60 *C
• Allowable relative humidity range : 0 % - 100 %
• Cooling method : Natural convection
• Max. operating altitude : 4000 m
• Noise ( typical ) : < 45 dB ( A )
• Display : LED digital display & LED indicator
• Communication : RS485/Ethernet/WLAN/CAN
• DI / DO : DI*4 / DO*1/DRM
• DC connection type : MC4 ( PV, Max.6 mm2 ) / Evo2 Compatible ( Battery, Max.6 mm2)
• AC connection type ****** : Plug and Play ( Grid Max.16 mm2, Backup Max.6 mm2 )
• Grid compliance : IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62477-1, AS/NZS 47777.2:2020
• Country of manufacture : China

ระยะเวลารับประกันตัวสินค้า 10 ปี
