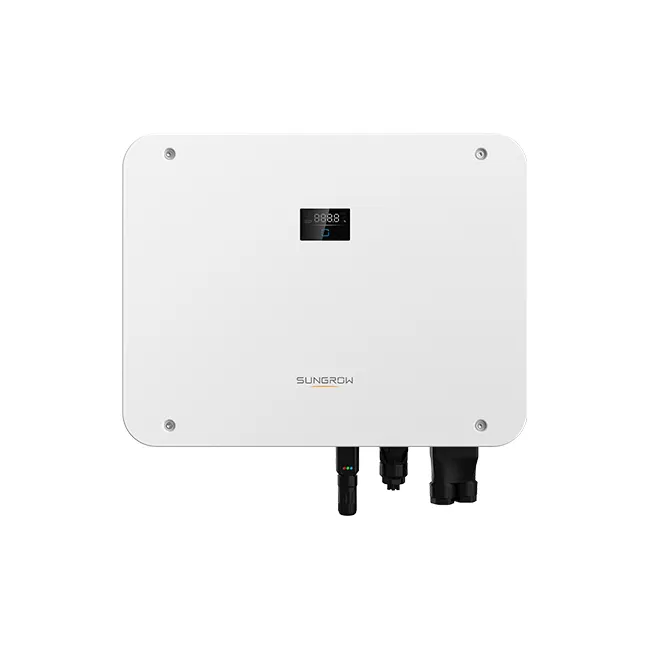

Inverter Sungrow 15kW 3phase Hybrid 10Y

 โพสต์เมื่อ : 13 ก.พ 2568 เวลา 8:5 น.
Inverter-Sungrow-15kW-3phase-Hybrid-10Y
Inverter-Sungrow-15kW-3phase-Hybrid-10Y

Inverter Sungrow 15kW 3phase Hybrid 10Y

Input (DC)

  • Recommended max. PV input power : 30000 Wp , 40000 Wp , 50000 Wp
  • Max. PV input voltage * : 1000 V
  • Min. PV input voltage / Startup input voltage : 150 V / 180 V
  • Rated PV input voltage : 600 V
  • MPPT operating voltage range ** : 150 V - 950 V
  • No. of independent MPP trackers : 3
  • No. of PV strings per MPPT : 2 / 2 / 1
  • Max. PV input current : 80 A ( 32 A / 32 A / 16 A )
  • Max. DC short-circuit current : 100 A ( 40 A / 40 A / 20 A )
  • Max. current for input connector : 30 A

Battery data

  • Battery type : Li-ion battery
  • Battery voltage range : 100 V - 700 V
  • Max. charge / discharge current *** : 50 A / 50 A
  • Max. charge / discharge power : 30000 W / 15000 W , 30000 W / 20000 W , 30000 W / 25000 W

Input and Output (AC)

  • Max. AC power from grid **** : 43000 VA
  • Rated AC output power : 15000 W , 20000 W , 25000 W
  • Max. AC output apparent power : 15000 VA , 20000 VA , 25000 VA
  • Max. AC output current : 22.8 A , 30.4 A , 37.9 A
  • Rated AC voltage : 3 / N / PE, 220 V / 380 V ; 230 V / 400 V; 240 V / 415 V
  • AC voltage range : 270 V - 480 V
  • Rated grid frequency : 50 Hz / 60 Hz
  • Grid frequency range : 45 Hz - 55 Hz / 55 Hz - 65 Hz
  • Harmonic (THD) : < 3 % ( of rated power )
  • Power factor at rated power / Adjustable power factor : > 0.99 / 0.8 leading to 0.8 lagging
  • Feed-in phases / connection phases : 3 / 3-N-PE

Backup data(on grid mode)

  • Max. output power for backup load **** : 43000 W
  • Max. output current for backup load : 3 * 63 A

Backup data(off-grid mode)

  • Rated voltage : 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V ( ± 2 % )
  • Rated frequency : 50 Hz / 60 Hz ( ± 0.2 % )
  • THDV ( @Linear load ) : 2 %
  • Backup switch time : < 10 ms
  • Rated output power : 15000 W / 15000 VA 20000 W / 20000 VA 25000 W / 25000 VA
  • Peak output power ***** : 25500 W / 25500 VA ,10 s , 32000 W /32000 VA ,10 s , 36500 W /
  • 36500 VA ,10 s

Efficiency

  • Max. efficiency / European efficiency : 98.1 % / 97.6 % 98.2 % / 97.8 %

Protection & Function

  • Grid monitoring : Yes
  • DC reverse polarity protection : Yes
  • AC short-circuit protection : Yes
  • Leakage current protection : Yes
  • DC switch (solar) : Yes
  • Surge protection : DC Type II / AC Type II
  • PID zero : Yes
  • Battery input reverse polarity protection : Yes

General data

  • Topology (solar / battery) : Transformerless / Transformerless
  • Degree of protection : IP65
  • Dimensions (W * H * D) : 620 mm * 480 mm * 245 mm
  • Weight : 38 kg , 40 kg
  • Mounting method : Wall-mounting bracket
  • Operating ambient temperature range : -25 ℃ - 60 ℃
  • Allowable relative humidity range(Non-condensing) : 0 % - 100 %
  • Cooling method Natural convection : Fan cooling
  • Max. operating altitude : 2000 m
  • Noise(Typical) : 35 dB ( A ) , 50 dB ( A )
  • Display : LED
  • Communication : RS485, WLAN, Ethernet, CAN DI / DO DI * 4 / DO * 2 / DRM0
  • DC connection type : MC4 compatible connector ( PV,Max.6 mm² ) /Plug and play connector ( battery, Max.10 mm² )
  • AC connection type : Plug and play connector ( Max.16 mm² )
  • Compliance : IEC / EN 62109, IEC 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 62920, EN 55011, CISPR 11,VDE-AR-N-4105, EN 50549-1, NRS 097, AS/NZS 4777.2:2020, TOR Type A, R25, CEI 0-21

ระยะเวลารับประกันตัวสินค้า 10 ปี

Price XXX
